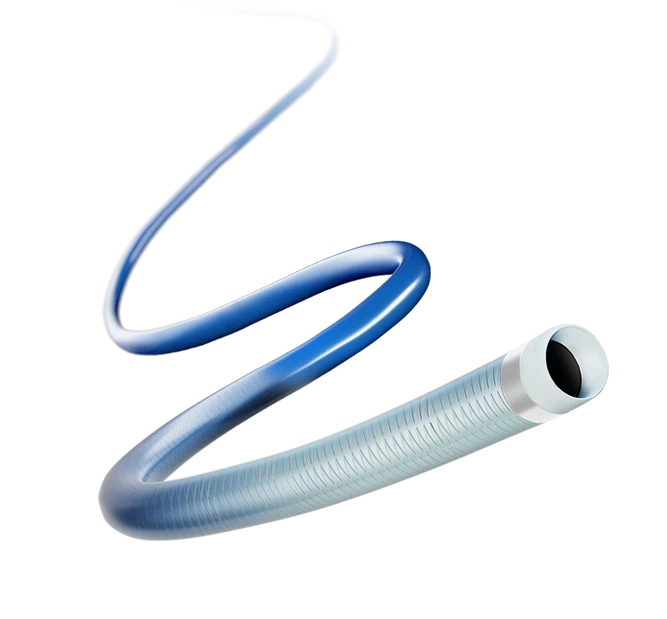

TranaviTM Microcatheter
TranaviTM Microcatheter is intended to assist in the delivery of physician-specified therapeutic devices such as stents, therapeutic agents such as embolization materials, and diagnostic agents such as contrast media into the peripheral, coronary, and neuro vasculature.

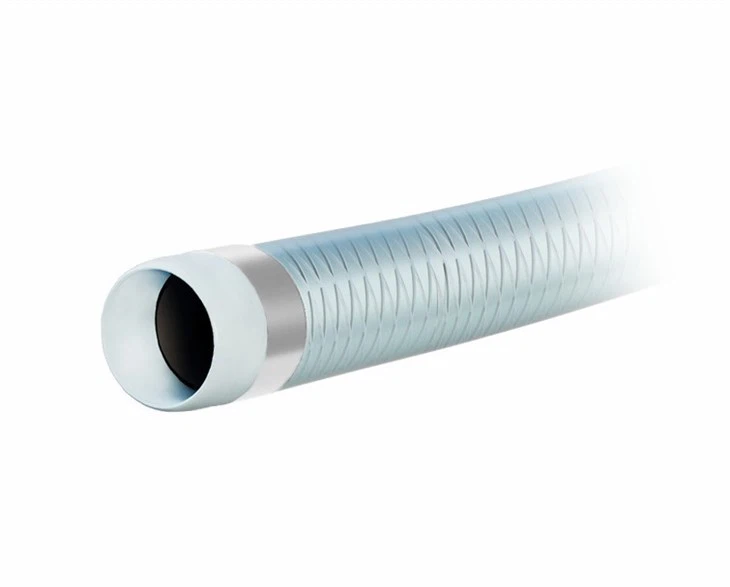

1. The conic rounded distal tip design reduce vessel trauma.
2. Shapeable distal tip is designed to offer superior vessels election and catheter trackability in tight curves and bifurcations.
3.The hybrid structure of coil and braiding balance flexibility and maneuverability.
4. The progressive flexible zones define on anatomical studies to improve trackability, support and deployment accuracy.
|
Catalogue No. |
Inner Diameter(inch) |
Outer Diameter Distal/Proximal (F) |
Effective Length(cm) |
Tip Configuration |
Marker Qty. |
|
1721-150-2S |
0.017 |
1.7/2.1 |
150 |
Straight |
2 |
| 1721-150-2X |
0.017 |
1.7/2.1 | 150 | 45 degree | 2 |
| 1721-150-2R | 0.017 | 1.7/2.1 | 150 | 90 degree | 2 |
| 1721-150-2J | 0.017 | 1.7/2.1 | 150 | J | 2 |
| 1721-160-2S | 0.017 | 1.7/2.1 |
160 |
Straight | 2 |
| 1724-150-2S | 0.017 | 1.7/2.4 | 150 | Straight | 2 |
| 1724-150-2X | 0.017 | 1.7/2.4 | 150 | 45 degree | 2 |
| 1724-150-2R | 0.017 | 1.7/2.4 | 150 | 90 degree | 2 |
| 1724-150-2J | 0.017 | 1.7/2.4 |
150 |
J |
2 |
| 1724-160-2S | 0.017 | 1.7/2.4 |
160 |
Straight | 2 |
TranaviTM 21
|
Catalogue No. |
Inner Diameter(inch) |
Outer Diameter Distal/Proximal (F) |
Effective Length(cm) |
Tip Configuration |
Marker Qty. |
|
2327-135-1S |
0.021 |
2.3/2.7 |
135 |
Straight |
1 |
| 2327-150-1S | 0.021 | 2.3/2.7 | 150 | Straight | 1 |
| 2327-150-2S |
0.021 |
2.3/2.7 | 150 | Straight | 2 |
| 2327-150-2X | 0.021 | 2.3/2.7 | 150 | 45 degree | 2 |
| 2327-150-2V |
0.021 |
2.3/2.7 |
150 |
VTK | 2 |
| 2327-160-1S | 0.021 | 2.3/2.7 | 160 | Straight | 1 |
TranaviTM 27
|
Catalogue No. |
Inner Diameter(inch) |
Outer Diameter Distal/Proximal (F) |
Effective Length(cm) |
Tip Configuration |
Marker Qty. |
|
2821-135-1S |
0.027 |
2.8/3.1 |
135 |
Straight |
1 |
| 2831-150-1S | 0.027 | 2.8/3.1 | 150 | Straight | 1 |
| 2831-150-2S |
0.027 |
2.8/3.1 | 150 | Straight | 2 |
| 2831-150-1V | 0.027 | 2.8/3.1 | 150 | VTK | 1 |
| 2831-160-1S |
0.027 |
2.8/3.1 |
160 |
Straight | 1 |
TranaviTM Microcatheter is compatible with DMSO.
FAQ
Q1: What is a microcatheter, and what is it used for?
A1: A microcatheter is a small and flexible tube typically used to deliver contrast dye, devices, or medication to specific areas within the body during medical procedures such as angiography or embolization.
Q2: How is a microcatheter inserted into the body?
A2: A microcatheter is inserted into the body through a small incision or puncture, usually at the site of the treatment or through an artery in the wrist or groin.
Q3: Can anyone use a microcatheter?
A3: Microcatheters can only be used by trained medical professionals who have experience in using them in specific procedures.
